Setting Pressure：

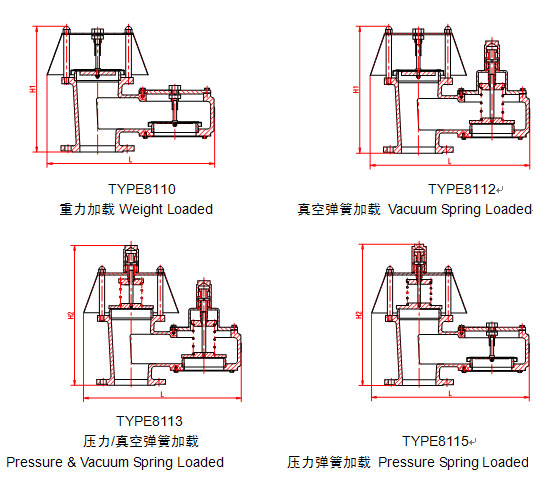

	TYPE8110	TYPE8112	TYPE8113	TYPE8115
Set Pressure (Kpa)	0.2～6.9	0.2～6.9	6.9～103.4	6.9～103.4
Set Vacuum (Kpa)	-0.2～-4.3	-4.3～-82	-4.3～-82	-0.2～-4.3

1. Sizes 2" through 12"；
2. Available in aluminum, carbon steel, stainless steel and other materials；
3. Modular construction；
4. FEP diaphragms can effectively prevent seat and pallet from sticking, Select the seal structure according to the operation conditions；
5. The flanges of inlet and outlet are ANSI B16.5 150Lb RF.(It can be required by user).
