The current position ：Home -> products -> 8130 Series Pressure Relief Valve
Name：8130 Series Pressure Relief Valve
Description：
Setting Pressure：

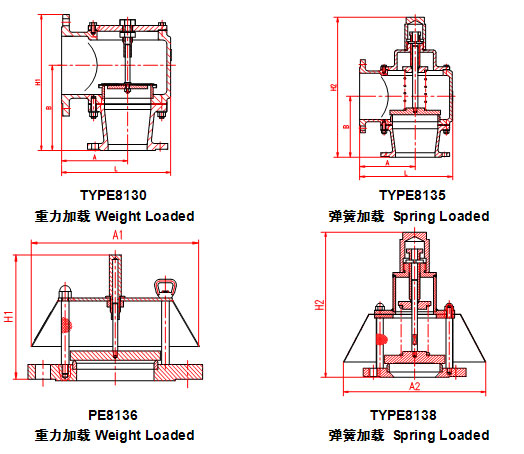

TYPE8130
TYPE8135
Pressure (Kpa)
0.2～6.9
6.9～103.4
TYPE8136
TYPE8138
Pressure (Kpa)
0.2～6.9
6.9～103.4
Feature： 1. Sizes 2" through 12"； 2. Available in aluminum, carbon steel, stainless steel and other materials； 3. Piped away； 4. Modular construction； 5. FEP diaphragms can effectively prevent seat and pallet from sticking, Select the seal structure according to the operation conditions； 6. The flanges of inlet and outlet are ANSI B16.5 150Lb RF.(It can be required by user).
